GEZE DOOR CLOSER

TS 1000C
 Surface-mounted rack and pinion door closer




Product features
• Variable closing force in two sizes achieved by simply turning the link arm’s power shoe :
  ‘Weak’ (closing force size 2 to EN 1154) for leaf widths up to 850 mm ‘Strong’ (closing force size 3 to
  EN 1154) for leaf widths up to 950 mm
• Increased closing force due to offset installation for leaf widths up to 1100 mm (size 4 to EN 1154)
• Closing speed adjustable, as is hydraulic latching action
• Option: with hold-open link arm allowing the closer to hold doors open between 700 and 1500

Application range
• For single-action doors up to 950 mm (1100 mm)
• Can be used for right and left hand doors without adjustment
• For all common types of installation

Standard version/package
Overhead door closer GEZE TS 1000 C complete with link arm, screw accessories and installation template (Mounting plate not included)
GEZE TS 1000 C with hold-open link arm
for an adjustable opening angle between 700 and 1500
__________________________________________________________________

TS1500
Surface-Mounted Rack and Pinion Door Closer






Product features
• Variable closing force in two sizes achieved by simply turning the link arm’s power shoe:
  ‘Weak’(closing force size 3 to EN 1154)for leaf widths up to 950 mm‘Strong’(closing force size 4 to EN
  1154)for leaf widths up to 1100 mm
• Closing speed adjustable, as is hydraulic latching action
• Option: with hold-open link arm allowing the closer to hold doors open between 700 and 1500

Application range
• For single-action doors up to 1100 mm
• Can be used for right and left hand doors without adjustment
• Standard type of installation: door mount, transom mounting is possible

Standard version/package
Overhead door closer GEZE TS 1500 complete with screw accessories and installation template (Mounting plate not included); still needed: link arm

GEZE TS 1500 with hold-open link arm
for an adjustable opening angle between 700 and 1500

Overhead Door Closer GEZE TS 1500 with Guide Rail

Product features
• Surface-mounted rack and pinion door closer TS 1500 with guide rail, for interior doors up to 850 mm
• Closing speed adjustable, as is hydraulic latching action

Application range
• For interior doors
• For single-action doors up to 850 mm
• Can be used for right and left hand doors without adjustment
• Standard type of installation: door mount

Standard version/package
Overhead door closer GEZE TS 1500 G complete with screw accessories and installation template (Mounting plate not included); still needed: guide rail
_________________________________________________________________

TS 2000 V
Surface-mounted rack and pinion door closer,closing force size 2/4/5 according to EN 1154



Product features
• With variable closing force, size EN 2/4/5
• Closer body available as only one size as standard
• Closing speed adjustable at front
• Latching action adjusted via link arm
• Concealed mounting plate

Application range
• For single-action doors up to 1250 mm
• Can be used for right and left hand doors without adjustment
• Standard type of installation: door mount, transom mounting ispossible

Standard version/package
Overhead door closer GEZE TS 2000 V complete with screw accessories and fitting template (mounting plate not included); still needed: link arm

GEZE TS 2000 V with hold-open link arm
for an adjustable opening angle between 700 and 1500

GEZE TS 2000 BV
with hydraulic latching action adjustable at front and fixed backcheck
__________________________________________________________________

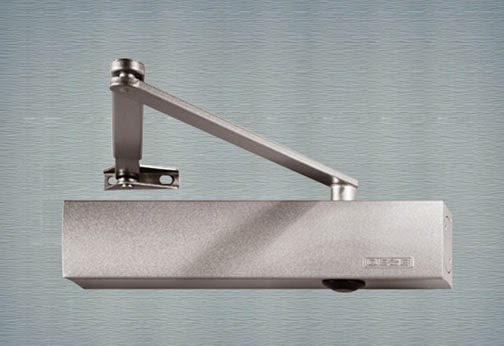

TS 4000

Surface-mounted rack and pinion door closer

Product features

• Closing force size EN 1-6 and size EN 5-7 adjustable

• Closer in only one construction size

• Optical power size indicator

• Back check and thermo constant closing speed adjustable at front

• Latching action adjusted via link arm

• Safety valve in open and close direction

Application range

• For single-action doors, door leaf widths up to 1400 mm (size 1-6) door leaf widths up to 1600 mm
  (size5-7)

• Can be used for right and left hand doors without adjustment

• For smoke and fire-proof doors

• Standard type of installation: door mount, transom mounting is possible

Standard version/package

Overhead door closer GEZE TS 4000 complete with screw accessories and installation template (mounting plate not included); still needed: link arm

GEZE TS 4000 with hold-open link arm

for an adjustable opening angle up to 1500 (not permitted for use on smoke and fire-proof doors)



GEZE TS 4000 E

Overhead door closer with electro hydraulic hold-open

Product features

• Closing force size EN 1-6 adjustable

• Closer in only one construction size

• Optical power size indicator

• Thermo constant closing speed adjustable at front

• Latching action adjustable via link arm

• Infinitely variable hold-open angle between 800 and 1800

• Operating voltage 24 V DC

• Low power consumption approx. 1 Watt

• Same fitting hole pattern as all GEZE TS 4000 closers

Application range

• For single-action doors up to 1400 mm

• Can be used for right and left hand doors without adjustment

• For smoke and fire-proof doors

Standard version/package

Overhead door closer GEZE TS 4000 E for standard mounting, 24 V DC, complete with mounting material and installation template (mounting plate not included); still needed: link arm

GEZE TS 4000 E / transom mounting 24 V DC

(on smoke and fire-proof doors only permitted if transom mounting has been approved for the respective door in the official approval certificate)

Electrical installation

The GEZE TS 4000 E has to be connected to a 24 V DC direct voltage supply to allow the door to be held open.

Function

• Voltage applied to closer = door held open

• No voltage applied or switched off = door not held open, door closes automatically

• The door can be closed manually at any time regardless of wheather or not voltage is being applied

Electrical data

• Operating voltage 24 V DC ±10%

• Connected load 45 MA

• Max. permissible residual ripple 20%

• Enclosure rating IP 43 (for interior use only)
